Power Pad

Additional information

Power Pad Description

Model BCT-DCPP
Maximum Power at STC (Pmax) 160W Temperature

Coefficient of Pmax

(0.5±0.05)%/℃
Optimum Operating

Voltage (Vmp)

16V (Air20℃,Sun0.8km/

㎡,Wind1m/s)

47±2℃
Optimum Operating

Current (Imp)

9.375A Operating

Temperature

-40℃ – 85℃
Open-circuit Voltage (Voc) 19.5V Max . System Voltage 1000V DC
Short-circuit Current (Isc) 10.83A Power Tolerance ±5
Temperature

Coefficient of Voc

(80±10)mV/℃ Battery Electric 12V/75Ah
Temperature

Coefficient of Isc

(0.065±0.015) %/℃ Warranty 2 years

Power Pad Application:

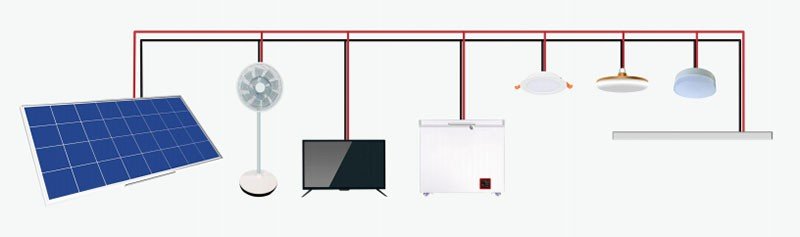

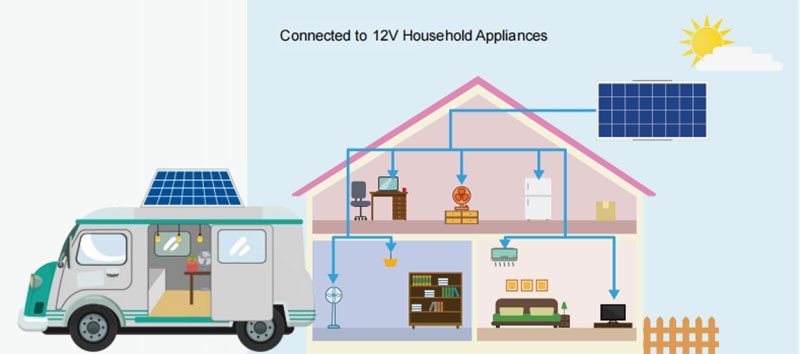

The newly designed solar panel is integrated with the battery, and controlled by the intelligent charge and discharge controller, which is used to replace emergency lighting and the residents lighting in the areas with little or no electricity. No need cable laying, no additional installation of solar panels, no AC power supply, no electricity costs, using dc power supply, intelligent control, with good stability,long life, high efficiency, simple installation and maintenance, high safety performance, energy conservation,environmental protection, economic and practical advantages. Widely used in family, outdoor activities, commercial places, suitable for household lighting, field work, tourism camping, farms, plantations, night market stalls, restaurants, farmhouses and other places.
